Grid – ABS Vent Cover

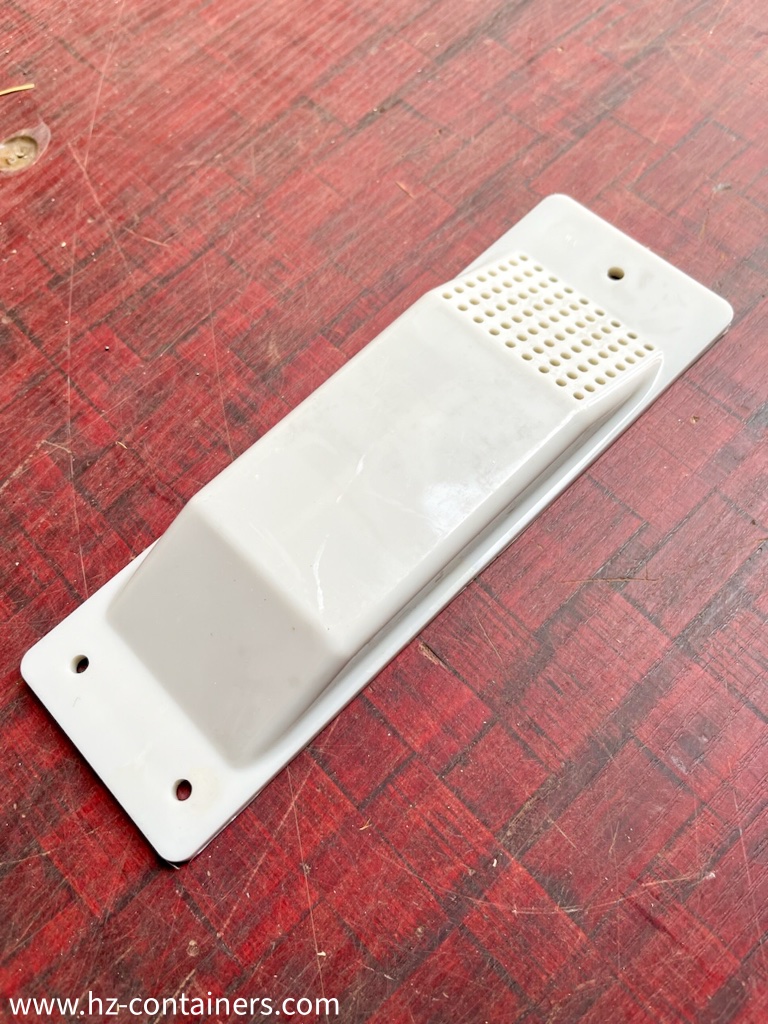

Grid – ABS Vent Cover is a key structural element found on the outer side of standard dry van shipping containers. Its main function is to enable passive air exchange between the internal and external environment of the container. The name combines the Czech term “shipping container grid” and the English “ABS Vent Cover,” reflecting the global character and technical standard of this component.
It is a small, highly durable plastic cover that protects a series of ventilation openings drilled into the corrugated wall of the container. Its primary function is to ensure shipping container ventilation, which is essential for reducing the risk of condensation, moisture accumulation, overheating, and pressure differences. Proper air circulation protects not only the transported goods but also the container structure itself from damage caused by moisture, mold, corrosion, and rust.
The term “ABS” refers to the material used – acrylonitrile butadiene styrene (Acrylonitrile Butadiene Styrene), a robust thermoplastic polymer that excels in high impact strength, resistance to weather, UV radiation, and long service life. These ventilation covers are part of virtually all containers certified according to ISO standards and are among the basic replacement parts for shipping containers.
Critical Importance of Ventilation in Shipping Containers
To fully understand the importance of the ABS ventilation cover, we must recognize what environment can develop inside a hermetically sealed steel box. Shipping containers travel the world across climate zones, facing dramatic temperature and humidity fluctuations. Without proper ventilation, a destructive phenomenon known as container condensation can occur.
Principle of Condensation (“Container Rain” / “Container Sweat”)
Condensation, also referred to in practice as “container rain” or “container sweat,” is a process in which water vapor inside the container turns into liquid water. This phenomenon is caused by alternating day and night temperatures, the so-called diurnal cycle:
- Daytime cycle: The sun heats the steel walls and roof of the container. The air inside warms up, expands, and absorbs more moisture – which comes from the cargo (e.g., wood, textiles, food), pallets, or air introduced during loading.
- Nighttime cycle: As the temperature drops, the steel shell cools faster than the air inside. When the warm, humid air hits the cold walls, the dew point is reached and water vapor condenses into droplets.
- Container rain: Water droplets accumulate on the ceiling and upper walls of the container. With larger quantities, they begin to drip onto the goods, creating a “rain” effect inside the container.
Damage caused by condensation:
- Growth of mold and fungi on organic goods (textiles, paper, wood)
- Corrosion and rust of metal products and the container itself
- Damage to packaging (cardboard deformation, label loss, loss of integrity of bulk materials)
- Devaluation of sensitive cargo (electronics, pharmaceuticals, food)
The ventilation grid is the first line of defense – it enables constant, albeit mild, air exchange, thereby reducing temperature and humidity differences between the interior and surroundings, significantly limiting conditions for condensation formation.
Additional Physical Benefits of Ventilation
| Function | Significance for Cargo | Significance for Container |
|---|---|---|
| Moisture removal | Protection against mold, rust | Slowing corrosion |
| Pressure equalization | Prevention of packaging deformation | Protection of seals, longer service life |
| Protection against overheating | Ensuring cargo stability | Prevention of structural damage |
Design and Technical Parameters of ABS Ventilation Cover
Although seemingly simple, the design and material of the ventilation grid are the result of years of development – it must ensure optimal air flow while preventing water and pest intrusion. It is a high-quality component among container parts and accessories.
Material Composition: Why ABS Plastic is the Ideal Choice
Acrylonitrile butadiene styrene (ABS) is a thermoplastic that combines several key properties:
- Acrylonitrile: Ensures chemical resistance, stability against temperature fluctuations, long service life in aggressive environments (sea salt, industrial substances).
- Butadiene: Provides flexibility and impact toughness – resists impacts, vibrations, and mechanical stress during container handling.
- Styrene: Provides strength, dimensional stability, and a glossy surface for easy cleaning and precise manufacturing.
Advantages of ABS ventilation:
- Low weight, high resistance to UV radiation (does not become brittle in sunlight)
- Functionality in temperature range from -40 °C to +80 °C
- Resistance to weather, chemicals, and mechanical damage
- Long service life even under extreme conditions (sea, ports, outdoor storage)
Alternatives to ABS:
- PVC: Cost-effective, suitable for additional equipment or less exposed applications.
- Steel: Historically common, today mainly for containers with high vandalism risk. Heavier, more prone to corrosion.
Physical Design and Key Components
Modern ABS ventilation grid contains several functionally essential parts:
| Component | Function | Technical Specifications / ISO Code |
|---|---|---|
| Fan cover | Protects openings from direct rain and splashing water. | VRR |
| Labyrinth insert | Inside the grid, forms a system of baffles that prevents wind and water penetration but allows air passage. | VRB |
| Grid/Perforation | Prevents insect, rodent, and debris intrusion. | VRG |
| Mounting flange | Ensures secure attachment to the container, often with pre-drilled holes. | – |
| Sealing rubber | (In quality models) – prevents leakage around the flange. | – |
Modern ventilation grids are often color-coordinated with the container (e.g., green RAL6007, blue RAL5013, gentian blue RAL5010).
Dimensions and Air Flow
Most containers use two basic ventilation sizes:
| Grid Type | Dimensions (mm) | Air Flow | Number of Fasteners | Use |
|---|---|---|---|---|
| Narrow ventilation | approx. 200×50 to 205×42.5 | ~30–50 m³/h | 3 | Standard containers |
| Wide ventilation | approx. 350×150 | up to 100 m³/h | 8 | Older/large containers, special applications |
Air flow depends not only on size but also on labyrinth design, grid density, and the number of installed ventilation units.
Installation, Placement, and Maintenance
The effectiveness of the ventilation grid is directly dependent on its proper placement, installation, and regular inspection.
Standard Placement
Ventilation grids are installed according to precise technical rules:
- Position: Upper third of long side walls, just below the top side rail.
- Wall corrugation: Grids are recessed into the “inboard” wave, typically the second from the corner post, to avoid impacts.
- Quantity: Standard 20′ and 40′ containers have 2–4 grids, positioned diagonally opposite each other to support air flow.
Installation and Repairs
Procedure for Replacing/Installing Narrow Ventilation Grid:
- Remove the old or damaged grid and its bolts. If missing, remove fastening remnants.
- Clean the container surface so the seal adheres properly.
- Place the new ABS grid over the prepared ventilation openings.
- Secure with TIR certified bolts (often from the inside for theft protection).
- Apply quality sealant (e.g., marine/maritime) along the top and side edges of the flange. The bottom edge must remain unsealed – to allow drainage of any water.
Maintenance and Common Issues
| Problem | Consequence | Solution |
|---|---|---|
| Missing cover | Risk of leakage, pests | Immediate replacement |
| Damaged (cracked) grid | Reduced functionality | Replacement |
| Loose bolts | Leakage, vibration | Tightening, sealing |
| Wall deformation | Grid separation | Panel repair, installation |
| Blocked ventilation | Loss of air flow | Cleaning |
Additional Recommended Maintenance
- Inspection at least once a year before winter/maritime transport
- If condensation or odor is suspected inside the container, immediately check vent openness
- Regularly clean from leaves, cobwebs, and other debris
Context and Related Terms
Difference Between “Vented” and “Ventilated” Container
- Vented container: Standard dry container with several passive grids (ABS, PVC). Suitable for most goods.
- Ventilated container: Special container with an extensive duct system along the entire length of the sides and floor/roof – designed for goods requiring intensive air flow (coffee, cocoa, onions).
Other Types of Ventilation Systems
| Ventilation Type | Material | Air Flow | Purpose/Type of Use |
|---|---|---|---|
| Passive ABS/PVC | Plastic | Low | Standard transport |
| Steel lamella | Steel | Higher | Warehouses, workshops, chemical storage |
| Roof turbine | Steel/plastic | Very high | Active exhaust, chemical storage |
Grid in the Universal Container System
The ventilation grid is an example of the technical sophistication of universal containers. Even such a small component plays a crucial role in global logistics – protecting goods in transit and storage while extending the service life of the entire container. It is supplied together with other key components (door seals, locking bars, corner elements, floors) and is commonly available from specialized e-shops and major distributors.
Overview Table – Typical ABS Ventilation Grid Specification
| Property | Value/Description |
|---|---|
| Material | ABS (acrylonitrile butadiene styrene) |
| Resistance | UV, salt, chemicals, mechanical stress |
| Temperature Range | -40 °C to +80 °C |
| Color | Green (RAL6007), blue (RAL5013), gentian blue (RAL5010) |
| Dimensions (narrow) | approx. 200 × 50 mm or 205 × 42.5 × 25 mm |
| Dimensions (wide) | approx. 350 × 150 mm |
| Installation | 3–8 bolts (TIR safety), silicone seal |
| Air Flow | 30–100 m³/h (depending on type and quantity) |
| Location | Upper side walls of container, 2–4 units |
| Service Life | 10–20 years depending on environment |
Frequently Asked Questions and Recommendations
How do I know when the grid needs to be replaced?
If it is cracked, missing, or clearly leaking, it must be replaced immediately. Regular inspection is the best prevention.
Must I use an original ABS grid?
If you want to maintain ISO certification and full protection, an original or fully compatible part is recommended.
Is it possible to improve ventilation?
Yes, you can install more grids, use a roof turbine, or steel lamella vents – always with consideration for the type of stored goods.
Can an ABS grid be replaced with a metal one?
Yes, but only in cases where protection against vandalism or extremely aggressive environments is a priority.
