EPDM Sealing Rubber

What is EPDM Rubber?

EPDM is an abbreviation for Ethylene Propylene Diene Monomer, a synthetic elastomer widely recognized for its outstanding properties. This material is frequently used in industrial applications, particularly in outdoor environments, due to its resistance, flexibility, and resistance to extreme weather conditions, ozone, UV radiation, and various chemicals. The unique composition of EPDM sealing rubber ensures long-lasting performance in demanding conditions, making it an ideal choice for applications such as sealing shipping container doors.

EPDM rubber is highly resistant to aging and degradation, even with constant exposure to sunlight and harsh conditions, making it a preferred material for sealing and insulation purposes. Its ability to function in a wide temperature range (-40°C to +160°C) increases its suitability for global transportation, where containers are exposed to various climates and weather conditions.

What is EPDM Sealing Rubber Between Shipping Containers?

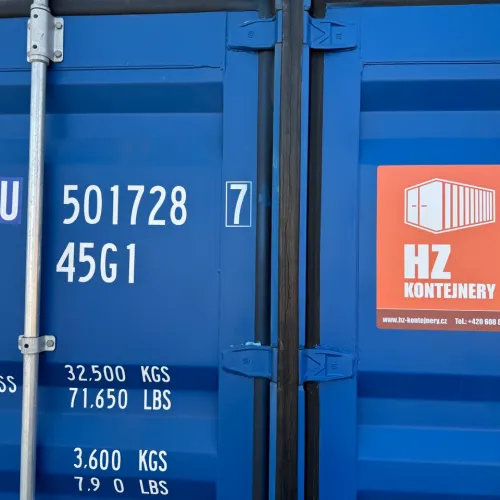

EPDM sealing rubber refers to specialized sealing designed to seal the doors of shipping containers. These seals are essential for creating an airtight and watertight closure that prevents the penetration of environmental factors, such as water, air, dust, and contaminants, into the container. They also play a key role in maintaining the internal temperature of containers, particularly in refrigerated (reefer) containers, and ensure safe transportation of goods.

They are typically shaped into profiles, such as J, C, or H shapes, and installed along the edges of container doors to maximize sealing efficiency. These profiles are designed to accommodate container door movements and ensure optimal sealing performance. Over time, due to wear and exposure to harsh environmental conditions, these seals may degrade, requiring timely replacement to maintain container functionality.

Seals not only prevent leaks but also protect the integrity of transported goods by shielding them from external influences, thereby increasing the reliability of shipping operations.

Why are EPDM Sealing Rubbers Important for Shipping Containers?

1. Weather Protection

Shipping containers are often exposed to adverse weather conditions, such as rain, snow, wind, and UV radiation, during transportation by land or sea. EPDM sealing rubbers provide robust protection by preventing water ingress and protecting goods from damage caused by weather effects.

2. Protection Against Contaminants

EPDM seals function as a barrier against dust, contaminants, and other pollutants that could compromise cargo cleanliness. By maintaining a sterile environment inside the container, they ensure that goods remain uncontaminated.

3. Airtight and Watertight Sealing

These seals create a secure airtight and watertight closure, which minimizes the risk of moisture, air, or gas leakage. This property is crucial for containers transporting sensitive items, such as electronics, food, or chemicals, which require a controlled environment.

4. Temperature Regulation

In refrigerated or temperature-controlled (reefer) containers, EPDM seals help maintain consistent internal temperatures by sealing gaps between container doors. This increases the efficiency of cooling systems and protects temperature-sensitive goods during transportation.

5. Durability

EPDM rubber is known for its exceptional resistance to aging, ozone, and extreme temperatures. Its long lifespan and minimal maintenance requirements make it a cost-effective sealing solution for shipping containers.

Uses of EPDM Sealing Rubbers

EPDM sealing rubbers are versatile and find application in various types of shipping containers, including:

  • 20ft and 40ft dry containers: Standard containers used for transporting general cargo.
  • High Cube containers: Taller containers designed for transporting larger volume goods.
  • Refrigerated (Reefer) containers: Temperature-controlled containers, ideal for perishable goods, such as food and pharmaceutical products.
  • Rail transport containers: Specially designed for rail transportation.
  • Tank containers: Special containers for transporting liquids, gases, or hazardous chemicals.

Types of EPDM Sealing Rubbers for Shipping Containers

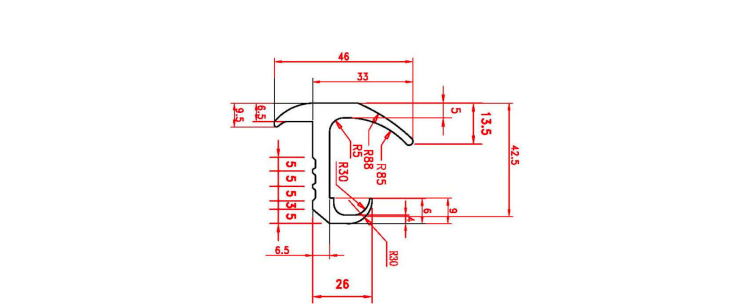

1. Type J Seals

  • Cross-section resembles the letter “J.”
  • Commonly used in dry containers.
  • Known for flexibility and durability.
  • Suitable for extreme temperatures (-40°C to +120°C).

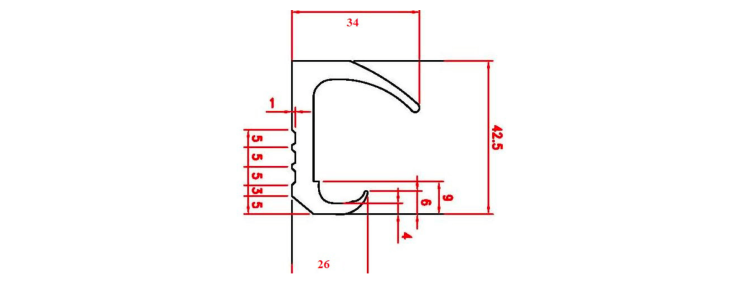

2. Type C Seals

  • Designed for increased sealing efficiency.
  • Often used in refrigerated containers.
  • Provides secure fastening along container edges.

3. Type H Seals

  • Cross-section resembles the letter “H.”
  • Ideal for heavy-duty sealing in high-load applications.
  • Offers excellent resistance to weather effects and aging.

4. EPDM Sealing Tapes

  • Designed to efficiently seal container edges.
  • Provide watertightness and resistance to mild acids.
  • Often used to repair damaged seals.

5. Rubber Extruded Tapes

  • Available in U-shapes or flat profiles.
  • Suitable for container doors and frames.
  • Made from durable EPDM material for long-term use.

Key Properties of EPDM Sealing Rubbers

1. High-Quality Material

EPDM rubber is characterized by excellent resistance to weather effects, UV radiation, and ozone. Its chemical stability ensures minimal degradation over extended periods.

2. Wide Temperature Range

The material maintains its functionality in extreme temperatures from -40°C to +160°C, making it suitable for various shipping routes and climates.

3. Flexibility and Easy Installation

The natural flexibility of EPDM allows adaptation to various door shapes and sizes. Installation is typically straightforward, with some seals requiring no adhesive for secure fastening.

4. Long Lifespan

EPDM seals can last more than ten years with proper maintenance, offering a cost-effective solution for container sealing.

5. Internal Metal Clips

Some EPDM seals are equipped with metal clips that ensure secure fastening during installation and stability during transportation.

6. Environmental Sustainability

EPDM rubber is recyclable and meets international environmental standards, making it an environmentally friendly choice for industrial applications.
