High Cube Containers – Uses and Benefits

What is a High Cube Container?

High Cube container, often abbreviated as HC container, is a special intermodal shipping container. These containers are designed with a greater height of 9 feet 6 inches (2.9 meters) compared to standard containers, which measure 8 feet 6 inches (2.6 meters) in height. The additional vertical space is ideal for transporting bulkier or oversized goods that do not fit into a standard container.

High Cube containers are available in various sizes, including 20ft, 40ft, 45ft, and 53ft. Due to their versatility, efficiency, and ability to optimize storage, they are widely used in international trade. These containers are compatible with various types of transport—ships, trains, and trucks—and are therefore indispensable in the transport and logistics industry.

Main Dimensions of High Cube Containers

Below are the most common sizes of High Cube containers and their dimensions:

1. High Cube Container 20ft

  • External dimensions: 20ft (Length) x 8ft (Width) x 9ft 6in (Height)
  • Internal dimensions: 19ft 4in (Length) x 7ft 8in (Width) x 8ft 10in (Height)
  • Capacity: ~1,320 cubic feet (37.4 cubic meters)
  • Weight of empty container: ~5,070 lbs (2,300 kg)
  • Payload capacity: ~62,082 lbs (28,160 kg)

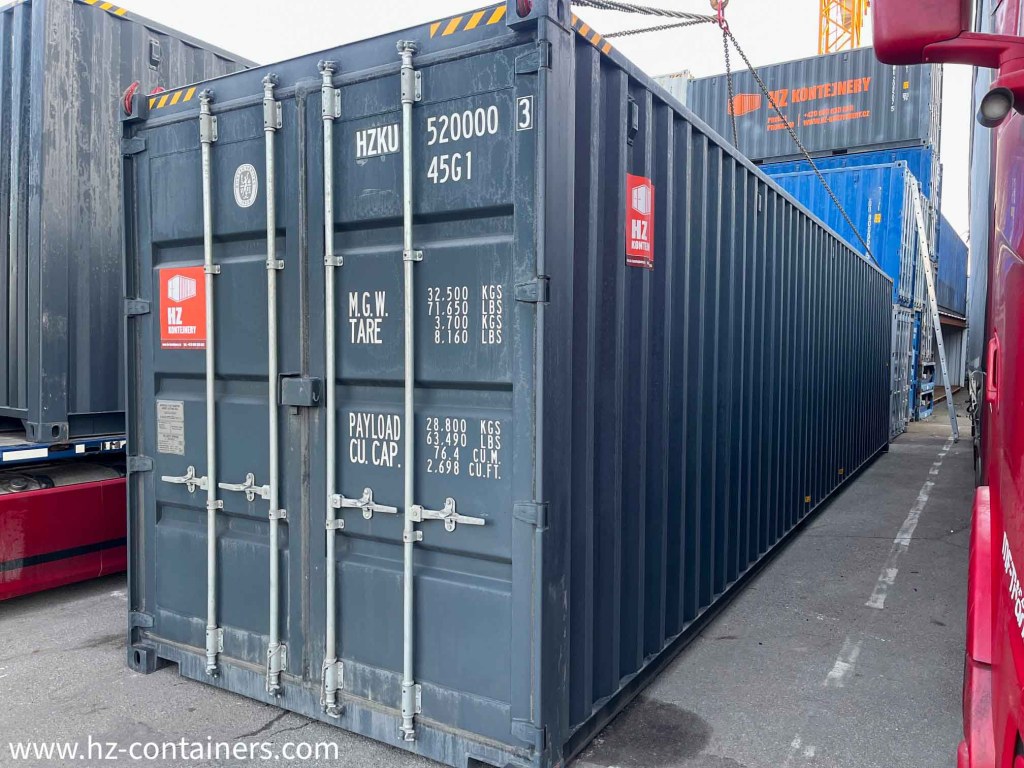

2. High Cube Container 40ft

  • External dimensions: 40ft (Length) x 8ft (Width) x 9ft 6in (Height)
  • Internal dimensions: 39ft 6in (Length) x 7ft 8in (Width) x 8ft 10in (Height)
  • Capacity: ~2,700 cubic feet (76.4 cubic meters)
  • Weight of empty container: ~8,820 lbs (4,000 kg)
  • Payload capacity: ~62,974 lbs (28,600 kg)

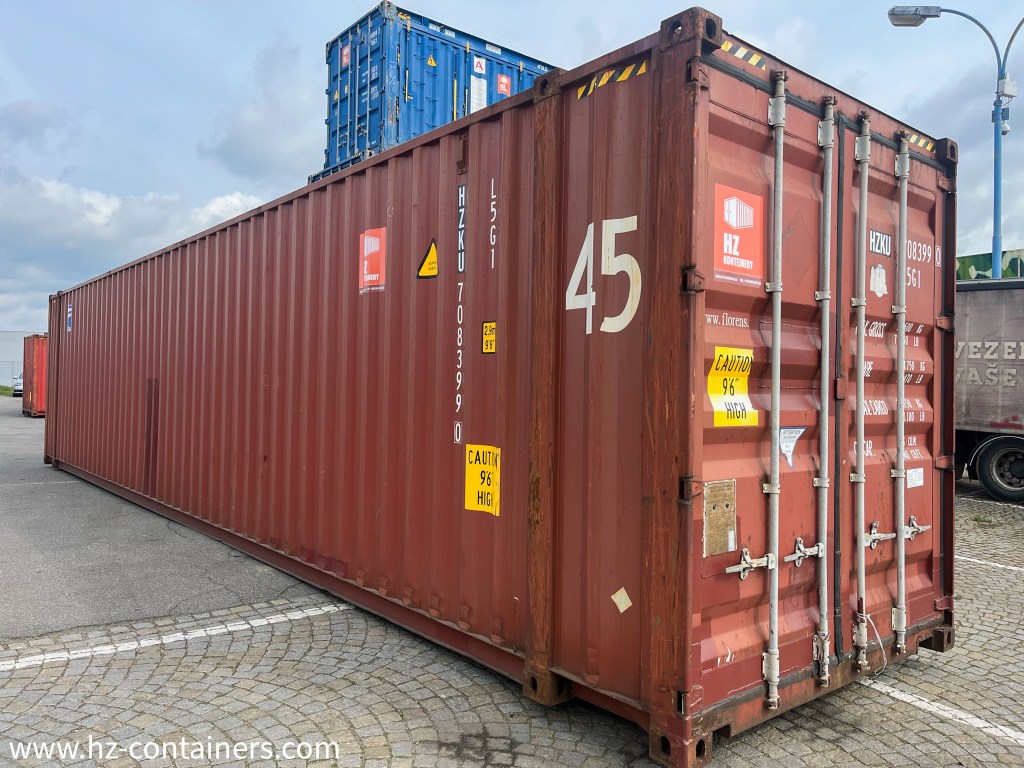

3. High Cube Container 45ft

  • External dimensions: 45ft (Length) x 8ft (Width) x 9ft 6in (Height)
  • Internal dimensions: 44ft 6in (Length) x 7ft 8in (Width) x 8ft 10in (Height)
  • Capacity: ~3,037 cubic feet (86 cubic meters)
  • Weight of empty container: ~10,552 lbs (4,800 kg)
  • Payload capacity: ~61,067 lbs (27,700 kg)

4. High Cube Container 53ft

  • External dimensions: 53ft (Length) x 8ft 6in (Width) x 9ft 6in (Height)
  • Internal dimensions: 52ft 6in (Length) x 8ft (Width) x 9ft 5in (Height)
  • Capacity: ~3,800 cubic feet (107 cubic meters)
  • Weight of empty container: ~11,110 lbs (5,040 kg)
  • Payload capacity: ~57,760 lbs (26,200 kg)

Uses of High Cube Containers

High Cube containers are utilized across various industrial sectors due to their greater height and versatility. Below are some common uses:

1. Oversized Machinery and Equipment

These containers are ideal for transporting large industrial machinery, construction equipment, and agricultural equipment. The increased height allows for the transport of bulkier items.

2. Palletized Goods

The additional vertical space allows for stacking more pallets, making these containers efficient for bulk transport in the retail, storage, and manufacturing sectors.

3. Furniture and Household Items

High Cube containers are widely used for transporting large furniture, such as sofas, beds, wardrobes, and other tall household items.

4. Refrigerated Products

When converted into refrigerated containers (reefers), High Cube containers are used to transport perishable goods, such as fruits, vegetables, seafood, dairy products, and pharmaceuticals. The additional space allows for the installation of cooling systems.

5. Modular Buildings and Prefabricated Units

High Cube containers are often converted into modular buildings, such as portable offices, homes, and pop-up retail spaces. Their height is advantageous for creating lofts, shelves, or other living spaces.

6. Raw Materials and Commodities

Industrial sectors utilize High Cube containers for materials such as textiles, wood, paper, and other bulky raw materials that require increased capacity.

Benefits of High Cube Containers

1. Increased Storage Capacity

High Cube containers offer 12% greater storage volume than standard containers due to their increased height, allowing for maximizing cargo space and reducing the number of containers needed.

2. Cost Efficiency

By being able to load more goods into a single container, High Cube containers often reduce transportation and logistics costs for larger or international shipments.

3. Versatility

These containers are compatible with standard transport equipment and can be easily modified according to specific requirements, such as adding insulation, ventilation, or cooling systems.

4. Durability and Safety

Due to their construction from durable, weather-resistant materials, High Cube containers provide excellent cargo protection during transport, even in challenging conditions.

5. Space Optimization

The increased height allows for better stacking and organization of goods, optimizing space in warehouses and storage facilities.

6. Environmental Benefits

Using fewer high-cube containers for large shipments reduces fuel consumption and emissions, contributing to more environmentally friendly logistics.

High Cube Containers vs. Standard Containers

FeatureHigh Cube ContainersStandard Containers
Height9ft 6in (2.9m)8ft 6in (2.6m)
Volume Capacity~12% more volumeStandard capacity
PriceHigher purchase/rental costsLower purchase/rental costs
Cargo TypeIdeal for oversized or bulky cargoSuitable for standard-sized cargo
Modification OptionsHighly customizableFewer modification options
Weight LimitSimilar to standard containersSimilar to High Cube containers

Factors to Consider When Selecting High Cube Containers

  1. Cargo Type: High Cube containers are ideal for taller or bulkier items.
  2. Cost vs. Volume: Consider whether the additional volume justifies the higher costs.
  3. Infrastructure Compatibility: Verify that the container fits the infrastructure at ports, warehouses, and transport routes.
  4. Need for Modifications: High Cube containers are suitable for customized projects, such as modular offices or refrigerated units.
  5. Space Limitations: Ensure there are no height clearance issues at terminals, bridges, or tunnels.

Conclusion

High Cube containers play a key role in the transport and logistics industry due to their versatility, increased cargo volume, and cost efficiency. Their ability to accommodate oversized goods, pallets, and modular buildings makes them essential in industries such as manufacturing, retail, construction, and agriculture.

Understanding their dimensions, uses, and benefits enables companies to make strategic decisions and improve their supply chains. Whether transporting heavy machinery, creating modular homes, or shipping perishable goods, High Cube containers provide reliable and innovative solutions for international trade.
