EOD – Easy Open Door
EOD (Easy Open Door) shipping container is a modern variant of the standard shipping container that is equipped with an innovative door mechanism for significantly easier and more comfortable opening. Such container is often referred to as a “shipping container with EOD doors” or “container with easy open doors”. A typical characteristic is the replacement of the traditional four-point locking system (four vertical locking bars) with a single robust vertical locking bar on the main (right) doors. This technological advancement significantly reduces the physical effort required when opening and closing the container and makes it an ideal solution for applications outside the maritime industry – for example, for storage, retail, construction, or residential use.
Distinguishing the EOD Acronym
The acronym “EOD” has different meanings in various fields. In military security, it stands for “Explosive Ordnance Disposal” (bomb disposal unit), while in the container industry it exclusively means “Easy Open Door”. This article is devoted exclusively to the second meaning – the structural element that represents a fundamental change in user-friendliness of shipping containers for sea transport.
Detailed Description: Easy Open Door Mechanics
Traditional Doors vs. EOD System
Standard shipping container doors are designed for maximum security and resistance to extreme weather conditions and heavy loads during stacking on ships. However, this robustness comes at the cost of high physical effort during handling – typically, four rigid locking bars (two on each door) must be released, which requires considerable strength and proper technique.
EOD system emerged as a response to this disadvantage and brings an entirely new standard in container door operation.
Key Innovation: From Four Bars to One
- Standard mechanism: Two metal doors, each with two vertical locking bars. Opening requires releasing all four bars, often using both hands and with maximum effort due to short levers and rusty mechanisms (especially on older containers).

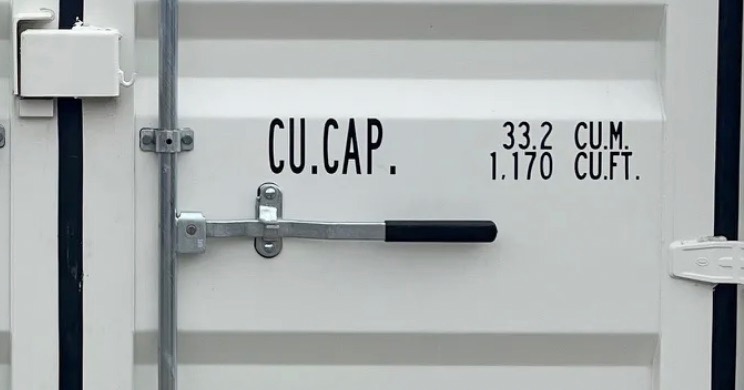

- EOD mechanism: The right doors are redesigned – they have a single massive vertical locking bar with an extended handle. The left doors retain the traditional two-point locking because they open only after the right doors. This single locking bar is reinforced and designed so that the security and strength of the doors are not compromised.
Physics of Easy Opening
The technological simplicity of EOD lies in the use of physical principles – primarily leverage and ergonomics:
- Extended handle: Thanks to the longer lever, the force required to rotate the bar and overcome the resistance of the locks is significantly lower. Opening can be managed by a physically weaker person, often with one hand.
- Ergonomic rubber grip: The handle is covered with non-slip rubber, which allows for a firm and comfortable grip even in rain, winter, or when working in gloves. This significantly increases safety and comfort.
- Lubrication zerk fittings on hinges: Each hinge is equipped with a lubrication fitting (zerk screw), which allows for regular lubrication without door disassembly. This ensures long-term smooth operation, reduced wear, and protection against corrosion and jamming.
Key Features and Components of EOD Containers
| Feature | Description | Benefit |
|---|---|---|
| Single vertical locking bar | Right doors have only one, significantly stronger bar. | Opening in half the steps compared to standard, higher comfort. |
| Extended lever with rubber grip | Longer handle with ergonomic covering. | Significantly less effort, possibility of one-handed operation. |
| Lubrication zerk fittings on hinges | Hinges can be easily lubricated. | Doors do not jam, minimized maintenance, longer lifespan. |
| Reinforced cam/keeper mechanism | Bottom locking is more robust, often supplemented with an extra SECURA lock. | Maximum security, doors hold firmly closed. |
| Standardized materials and dimensions | Same metal sheets, seals, and construction as standard containers. | Maintained water-tightness, strength, and weather resistance. |
| Ultra-secure lock box | Steel box for padlock, often in slim design. | Increases protection against theft, protects lock from cutting. |
Comparison: EOD Doors vs. Standard Container Doors
| Parameter | Standard Doors | EOD Doors |
|---|---|---|
| Locking | 4 vertical bars (2 on each door) | 1 reinforced bar on right doors, 2 standard on left |
| Operation | Physically demanding, often requires two hands | Easy, often manageable by a child or senior with one hand |
| Handle | Short, metal, without grip | Long, ergonomic, covered with rubber |
| Hinge Maintenance | No zerk fittings, lubrication difficult | Easy lubrication via zerk screws directly on hinges |
| Security | Standard cam/keeper, optionally lock box | Reinforced cam/keeper, always lock box, often SECURA additionally |
| Target User | Industry, transport, shipping lines | Storage, households, construction, schools, retail |
| Availability | All older and new containers | Primarily new (“one-trip”), 20 and 40 foot, standard/HC |
Technical Parameters and Dimensions
For example, for a 20-foot EOD container:
- External dimensions: length 6.06 m, width 2.44 m, height 2.59 m (standard height), HC variant height 2.89 m
- Internal dimensions: length 5.92 m, width 2.35 m, height 2.39 m (HC: 2.69 m)
- Door opening: width approx. 2.34 m, height approx. 2.28 m (HC: 2.58 m)
- Weight of empty container: approx. 2,200 – 2,400 kg (depending on design)
- Payload capacity: up to 28,000 kg (depending on specific type)
Main Advantages of EOD Containers
Overview of Key Benefits
- Easy handling: EOD doors allow for quick and effortless opening/closing, which is essential for daily access.
- Ergonomic design: Rubber grip and extended lever protect the user’s hands and back, minimizing injury risk.
- Low maintenance: Regular lubrication via zerk screws ensures long-term smooth operation without jamming or seizing.
- Higher security: Reinforced bottom locking (SECURA cam/keeper), modern lock box, and robust construction prevent forced entry.
- Long lifespan: New EOD containers are often offered with extended warranty (up to 10 years), confirming manufacturers’ confidence in their reliability.
Typical Uses and Applications
| Segment | Examples of Use |
|---|---|
| Self-service storage | Easy access for seniors, women, people with limited mobility |
| Construction and workshops | Quick opening for construction workers, tool and material storage |
| Retail, pop-up shops | Efficient opening/closing of retail kiosks or merchandise storage |
| Households, gardens | Garage, workshop, garden equipment storage, hobby, container homes |
| Schools, institutions | Safe storage of sports equipment, archiving, teaching materials |
| Farming, animal husbandry | Feed storage, equipment, possibility of opening with full hands |
Security Aspects and Maintenance
Security of EOD doors:
Modern EOD systems are equipped with a reinforced cam/keeper mechanism, lock box (often slim version), and the option to add a SECURA lock, which meets or even exceeds the security of four-point doors. It is recommended to use a quality padlock (e.g., ABUS Granit).
Maintenance:
The basis is regular lubrication of hinges via zerk screws (recommended at least once every six months depending on intensity of use), inspection of seals, and possible lubrication of locks and mechanics.
Related Terms for EOD Containers
- Shipping container: English term for a shipping container, the basic building block of transport and storage solutions.
- One-trip container: A container that has made only one journey from the manufacturing plant (usually in Asia) to Europe; practically new condition, the most common carrier of EOD doors.
- Lock box: Steel box protecting the padlock from cutting.
- High Cube (HC): Container 30 cm higher than standard, ideal for bulkier storage or conversion to living space.
- Zerk fitting: Lubrication screw on door hinges, allows easy lubrication.
- Granny Bar: Informal name for the long, easily operated lever of EOD doors.
- SECURA cam/keeper: Extra reinforced bottom lock, significantly increasing security against prying.
FAQ – Frequently Asked Questions
Is an EOD container as secure as a standard one?
Yes, thanks to the reinforced locking bar, lock box, and SECURA lock, security is fully comparable, often even higher.
Can EOD doors be retrofitted to an old container?
Theoretically yes, but practically it is expensive and technically demanding – it requires intervention by a welding shop. It is more advantageous to buy a new container already with EOD.
On what container sizes is EOD available?
Primarily on new (“one-trip”) 20 and 40-foot containers, in standard and HC variants. Double door design allows access from both sides.
How are EOD doors maintained?
Regularly lubricate hinges via zerk screws, keep the mechanism clean, and check seals. Component replacement is easy due to standardization.
Why aren’t EOD doors standard on all new containers?
The classic four-point system is the global industry standard for maritime transport, where extreme resistance to forces at sea is the priority. EOD is designed for the secondary market – storage, construction, retail – where emphasis is on user comfort.
Conclusion
EOD (Easy Open Door) containers represent a fundamental evolution in shipping container door construction. Through a simple yet thoughtful innovation (one long lever, ergonomic grip, lubrication zerk screws, and increased security), these containers are accessible to almost everyone – from businesses to households to seniors. The benefits of EOD solutions will be appreciated by anyone who needs quick, secure, and comfortable access to a container for daily use.
From a long-term cost and security perspective, investing in a new EOD container is much more advantageous than purchasing an old, constantly repaired container.
