20 ft maritime container in blue color RAL 5010, HZKU 251 284-9

A 20-foot maritime container in IICL 6 quality is a guarantee of maximum reliability and long service life. IICL 6 designates the top condition of the container, minimal wear and compliance with strict international standards. Thanks to this, this type of container is suitable even for demanding storage and transport purposes, where emphasis is placed on safety, strength and durability. We deliver the container to Havířov and elsewhere throughout the Czech Republic for free upon meeting the conditions below!

Dimensions, load capacity and volume of a 20-foot container

Container designation: type 22G1 – this is the most common 20-foot maritime container. Its external dimensions are approximately 6.058 m length, 2.438 m width and 2.591 m height. Internal dimensions are approximately 5.898 m × 2.352 m × 2.393 m.

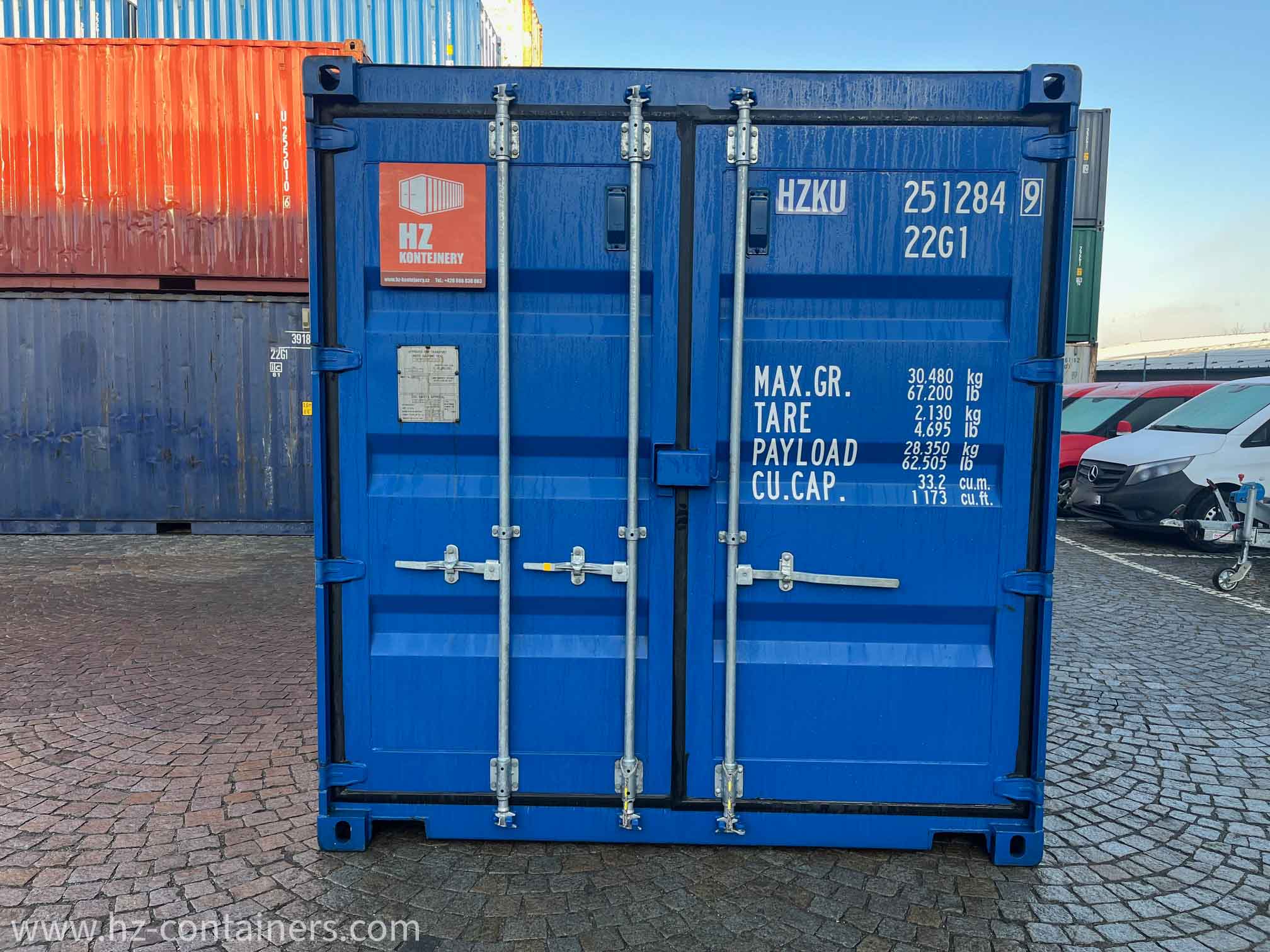

• Maximum container weight (MAX GROSS – M.G.W.) 30,480 kg – 67,200 lb
• Container weight (TARE) 2,130 kg – 4,695 lb
• Maximum net cargo weight (NET/PAYLOAD) 28,350 kg – 62,505 lb
• Maximum internal volume (CU. CAP.) 33.2 m³ (cubic meters) – 33.2 cu.m. – 1,173 cu.ft.

These parameters allow for trouble-free storage of a wide range of materials and goods. Dimensions are approximate and may vary slightly depending on the manufacturer.

Equipment and construction of the 22G1 container

The 22G1 type maritime container is an ideal choice for safe storage and transport. In the basic equipment, you will find 14 pieces of ventilation grilles (Louvered Vent), which ensure efficient air circulation and minimize the risk of moisture and mold inside the box. The container is further equipped with the most sought-after Easy Open Door (EOD) opening system on a single lever, which significantly simplifies handling and access to stored goods. Standard equipment also includes 20 lashing points, which allow for secure fastening and securing of cargo during transport and storage.

Use of container for storing chemicals on construction sites

Thanks to its robust construction, well-designed ventilation system and easy opening, the 22G1 container is an excellent choice for storing chemicals directly on the construction site. Ventilation grilles allow for the removal of any vapors and ensure constant air exchange, which is essential for safe storage of chemical substances. This minimizes the risk of dangerous vapor concentrations inside the container.

Thanks to the EOD system, handling of heavy and bulky drums, canisters or packages is very easy and safe, which will be appreciated especially by workers who frequently open and close the container even in gloves or in adverse conditions.

What can be stored and who the container is suitable for

In a 22G1 type container, you can store a wide range of chemicals commonly used on construction sites and in industry – from paints, adhesives, solvents, cleaning products to operating fluids, oils, lubricants or disinfectants. The interior space is large enough to accommodate, for example, up to 10 standard 200-liter drums, pallets with smaller canisters or other containers with liquid and bulk chemicals.

Such a solution will be appreciated especially by construction companies, manufacturing plants, logistics centers, maintenance teams, but also smaller entrepreneurs who need to safely store hazardous materials on-site for the short or long term.

Storage options and types

The container can be equipped with a shelf system, spill containment trays or special pans under drums and canisters, which will further increase storage safety. Ventilation grilles allow for storage of vapor-sensitive substances, while the EOD system speeds up access and handling even of heavy goods.

In addition to chemicals, the container can also store other construction materials, tools, protective equipment or components that require protection from weather and unauthorized access.

Benefits of ventilation grilles and EOD system

Fourteen ventilation grilles are essential for minimizing condensation and reducing the risk of corrosion and degradation of chemical substances. By maintaining a constant and dry environment, the service life of stored materials is extended and the safety of the entire operation is increased.

The Easy Open Door (EOD) system on a single lever allows for quick and convenient opening of the container without the need for great force or complex handling. This is invaluable with frequent entries where efficiency and safety are required.

Recommendations and tips for maximum use

To increase safety, we recommend equipping the 22G1 container with spill containment trays, non-slip flooring and possibly signaling accessories. Regularly check the integrity of chemical packaging and the condition of ventilation grilles. When storing chemicals, separate individual groups of substances according to their properties and secure them against tipping or leakage.

Also consider the possibility of installing internal lighting or a sensor to monitor vapor concentration, which further increases work safety.

Where the container can be used and its capacity

The 22G1 container is ideal for use not only on construction sites, but also in industrial areas, logistics centers, agricultural operations or temporary storage spaces. The volume of a 20-foot container offers sufficient space for storing large quantities of chemicals and materials – depending on the dimensions of the packaging, it can hold up to several tons of goods.

The 22G1 type container with 14 ventilation grilles, EOD system and 20 lashing points is a reliable and universal solution for safe and efficient storage of chemicals and other materials. Its well-designed construction, high safety and simple operation make it suitable for use in a wide range of industries. Rely on proven quality and ensure safe storage for your needs.

Shipping to Havířov and throughout the Czech Republic

We deliver the container quickly and reliably to Havířov and any other location in the Czech Republic. When purchasing two units (sizes 8′, 10′, 20′) or one unit of 40′ or 45′, you will receive FREE shipping to one destination. Shipping of a single container unit within the Czech Republic up to size 20′ is 140€ without VAT = 170€ including VAT. Outside the Czech Republic, shipping must be quoted individually according to the destination. Unloading is provided by the customer with their own crane, loading at the depot is included in the price.

A 20-foot IICL 6 maritime container in RAL 5010 color is a reliable and safe solution for your storage needs – do not hesitate to take advantage of our shipping offer throughout the Czech Republic!
