Arched roof between shipping containers 40′ – HZK812, white

ARCHED ROOF BETWEEN SHIPPING CONTAINERS LENGTH 12m, WIDTH 8m, WEIGHT 300g/m2, COLOR WHITE.

Need to quickly build an indoor storage space? You are in the right place!

The arched roof for 40′ foot shipping containers offers a really large covered space for outdoor material storage, machinery storage or work. Due to the variability of assembling the containers, thanks to this you can quickly create a temporary, easily moved or even a permanent outdoor shelter. And all this without investing, as in the construction of a brick covered hall.

However, the imagination for using this shelter does not have to be limited to shipping containers, as it can also be attached to a brick wall. You can also stack containers on top of each other. So the final height of the arched roof can be exactly as high as you need. And that simply by putting two containers on top of each other instead of one 40′ container.

Outdoor storage areas with an arched roof between shipping containers are widely used in agriculture and construction, where they provide sufficient facilities for dry storage. However, it can also be used in the industrial and logistics sectors.

They are made of easy-to-assemble structural elements, which enable the quick creation of a stable and durable structure.

The advantages of using these shelters are:
– flexibility and decomposability as needed
– quick installation
– resistance to natural conditions
– low acquisition costs compared to brick buildings

PARAMETERS:

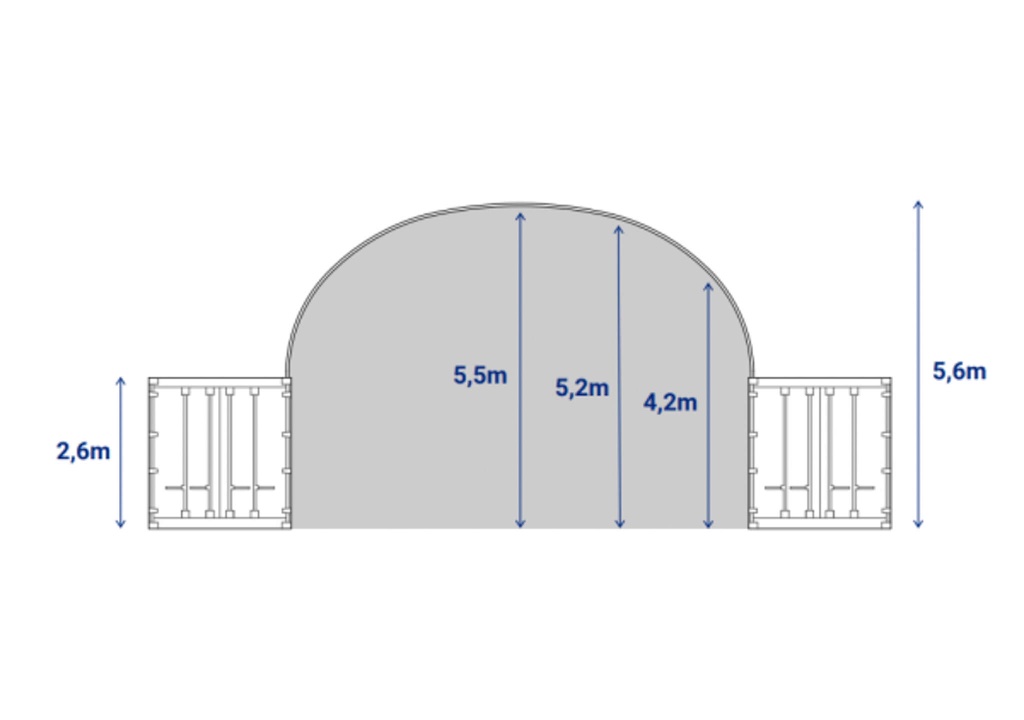

Width: 790 cm
Length: 1,220 cm (for 40′ containers)
Height: 300 cm (ridge)
Height at the highest point: 560cm

Steel structure: Steel S355JO, electrolytically galvanized, main profiles ∅76 x 2 mm

Fabric: HDPE 300 g/m2 – color white
Flame retardant: according to CPAI-84:1995
Temperature resistance: -30 – +70 °C

Maximum wind load: 0.50 kN/m² (EN13782, temporary structure)

Maximum snow load: 0.30 kN / m². If necessary, the container shelter can also be built in areas with a higher snow load. However, it is necessary to ensure that the limit of 0.30 kN / m² is not exceeded (e.g. by heating the shelter in winter or cleaning the roof from snow).

INCLUDED:
– Shed between shipping containers for size 40′ (L x W) 12.2m x 8m
– Color white, fabric HDPE weight 300g/m2
– mounting brackets (14 pcs) for quick installation on containers

NOT INCLUDED IN THE PRICE:
– transport
– containers

can be ordered for an additional fee:
– front wall with rolling doors – price €1836 without VAT
– rear wall with rolling doors – price €1836 without VAT
– front + back wall with rolling doors – price €3580 without VAT

Front/back walls (optional)
Suitable for standard containers with a height of 2.6 meters. Including ventilation and fabric door 326 x 370 cm (W x H) with a unique roll-up system for easy, quick and full opening of the fabric door. The roll-up system has a removable handle and is self-locking. The front / back wall is made of HDPE and includes a ventilation reinforcement and pressure opening.

The price for the shelter does not include shipping!
Considering that this is an oversized shipment that is stored on pallets, shipping is approximately €120 without VAT.

Transport weight and dimensions of the package in the unfolded state (L x W x H):

steel structure – 230 x 75 x 50 cm, 450 kg
fabric/material – 230 x 75 x 35 cm, 100 kg

Front/back wall (on the wall): for an extra charge – not included in the basic price
steel structure – 230 x 75 x 30 cm, 150 kg
fabric/material – 160 x 45 x 15 cm, 35 kg
