Arched roof between shipping containers 20′ – HZK806, white

ARCHED ROOF BETWEEN SHIPPING CONTAINERS LENGTH 6.1m, WIDTH 8m, WEIGHT 300g/m2, COLOR WHITE.

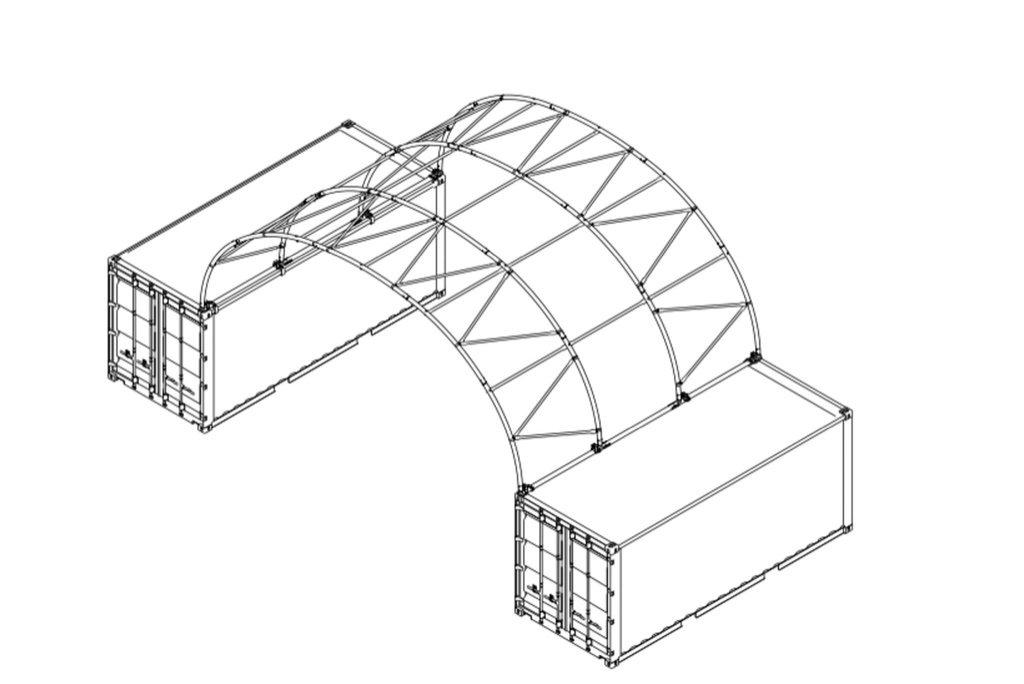

A shed with an arched roof between 20′ ft shipping containers to provide a huge covered area for storing material, machinery or work. Thanks to the modular nature of the containers, you can quickly create a permanent, but also relocatable durable outdoor shelter without investing money like in a brick hall.

Outdoor storage areas with an arched roof between shipping containers are often used in agriculture and construction where they provide sufficient facilities for dry storage. But it also finds great use in industrial or logistics sectors, where it is necessary to quickly build a covered space for storage.

These shelters between shipping containers are used as temporary and permanent material warehouses, workshops, shelters for large agricultural or construction machinery and others. They are made of structural elements that are easily connected to the containers and enable the rapid creation of a stable and durable structure.

The advantages of using these shelters are mainly quick installation, flexibility, disassembly as needed, portability and resistance to weather conditions. Last but not least, mainly lower procurement costs compared to traditional brick storage halls.

PARAMETERS:

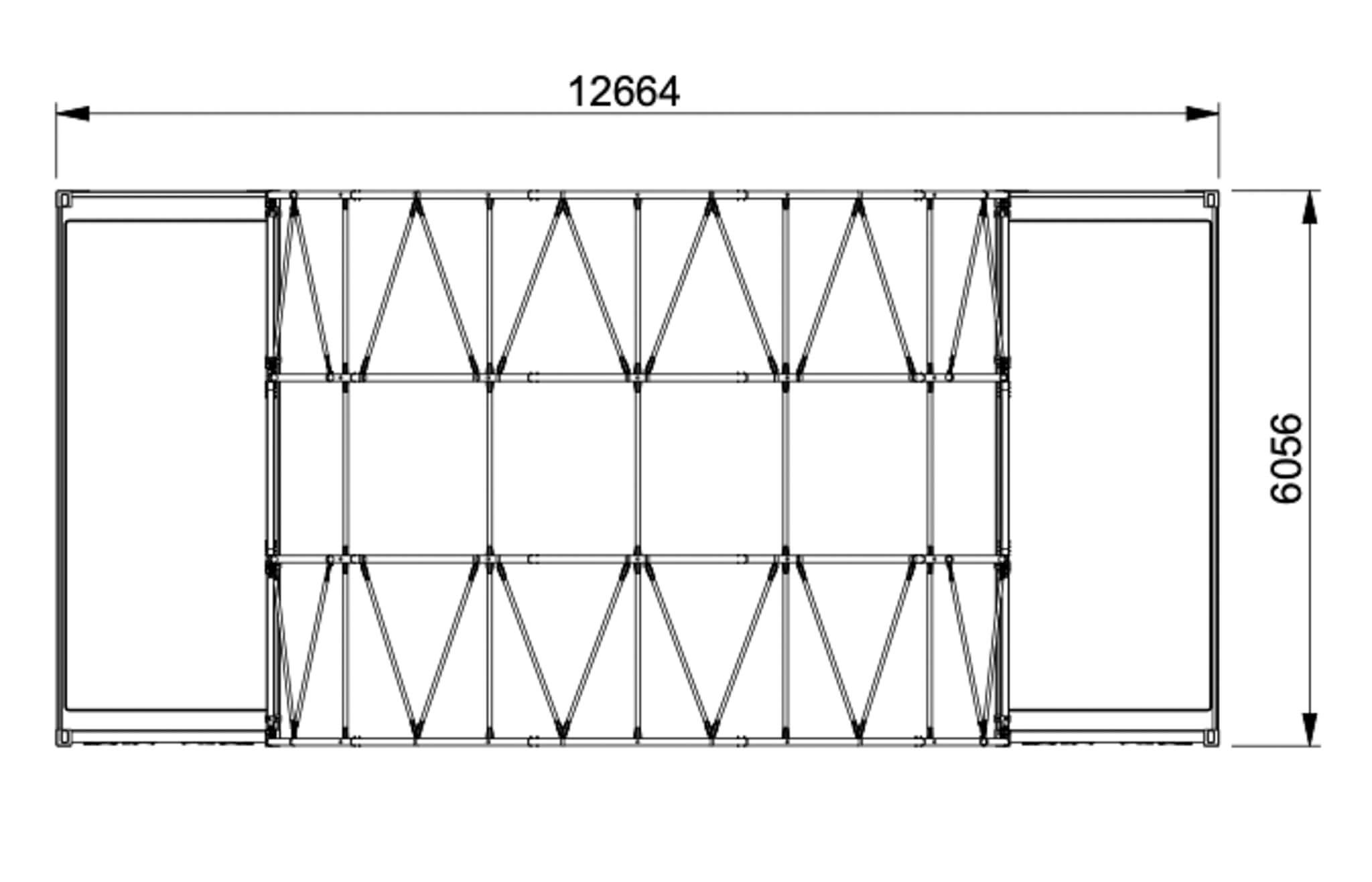

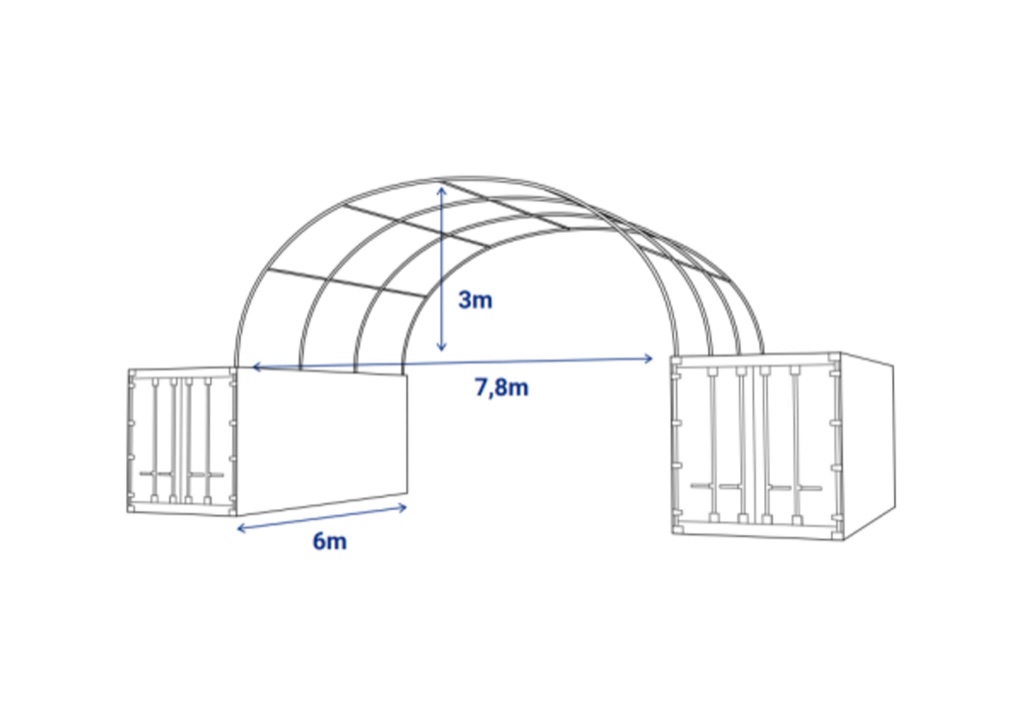

Width: 790 cm
Length: 606 cm (for 20′ containers)
Height from the top edge of the container: Approx. 60 cm (side), 180 cm (ridge)
Height at the highest point: 560cm

Steel structure: Steel S355JO, electrolytically galvanized, main profiles ∅76 x 2 mm

Fabric: HDPE 300 g/m2 – color white
Flame retardant: according to CPAI-84:1995
Temperature resistance: -30 – +70 °C

Maximum wind load: 0.50 kN/m² (EN13782, temporary structure)

Maximum snow load: 0.30 kN / m². If necessary, the container shelter can also be built in areas with a higher snow load. However, it is necessary to ensure that the limit of 0.30 kN / m² is not exceeded (e.g. by heating the shelter in winter or cleaning the roof from snow).

INCLUDED:
– Shelter between shipping containers (L x W) 6.1m x 8m
– Color white, fabric HDPE weight 300g/m2

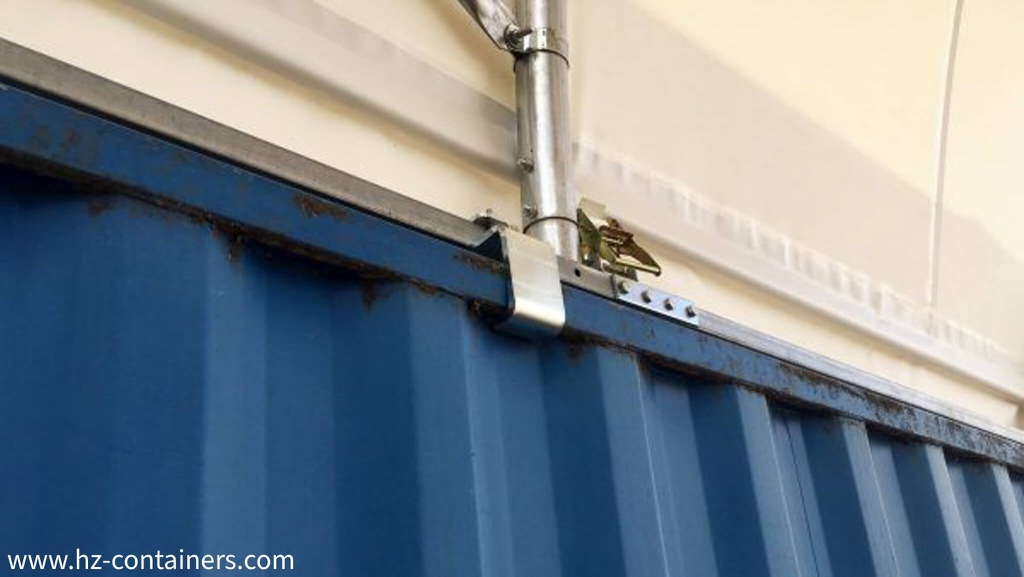

– mounting brackets (8 pcs) for quick installation on containers

NOT INCLUDED IN THE PRICE:
– transport
can be ordered for an additional fee:
– front wall with rolling doors – price 1700€ without VAT
– rear wall with rolling doors – price 1700€ without VAT
– front + back wall with rolling doors – price €3280 without VAT

Front/back walls (optional)
Suitable for standard containers with a height of 2.6 meters. Including ventilation and fabric door 326 x 370 cm (W x H) with a unique roll-up system for easy, quick and full opening of the fabric door. The roll-up system has a removable handle and is self-locking. The front / back wall is made of HDPE and includes a ventilation reinforcement and pressure opening.

The price for the shelter does not include shipping!
Considering that this is an oversized shipment that is stored on pallets, the cost of shipping is €220 without VAT.

Transport weight and dimensions of the package in the unfolded state (L x W x H):

steel structure – 230 x 75 x 50 cm, 375 kg
fabric/material – 230 x 75 x 35 cm, 75 kg

Front/back wall (on the wall): for an extra charge – not included in the basic price
steel structure – 230 x 75 x 30 cm, 150 kg
fabric/material – 160 x 45 x 15 cm, 35 kg
